The PTZ functionality allows you to capture everything in the room, regardless of camera placement, ideal for larger classrooms or unique layouts.
The AIWaft's 4K PTZ Camera seamlessly integrates with existing classroom technology, ensuring a smooth transition between online and offline segments. Zoom in on text, diagrams, or whiteboards to ensure clear visibility for all in-person and online students.
Experience the Power of AI Processing with AIWaft. Our sophisticated algorithms deliver exceptional image fidelity, maintaining vibrant colors and sharp details even in challenging lighting conditions. Advanced Wide Dynamic Range (WDR) technology effortlessly neutralizes glare and shadows, guaranteeing a consistently balanced image regardless of the lighting setup.
AIWAFT

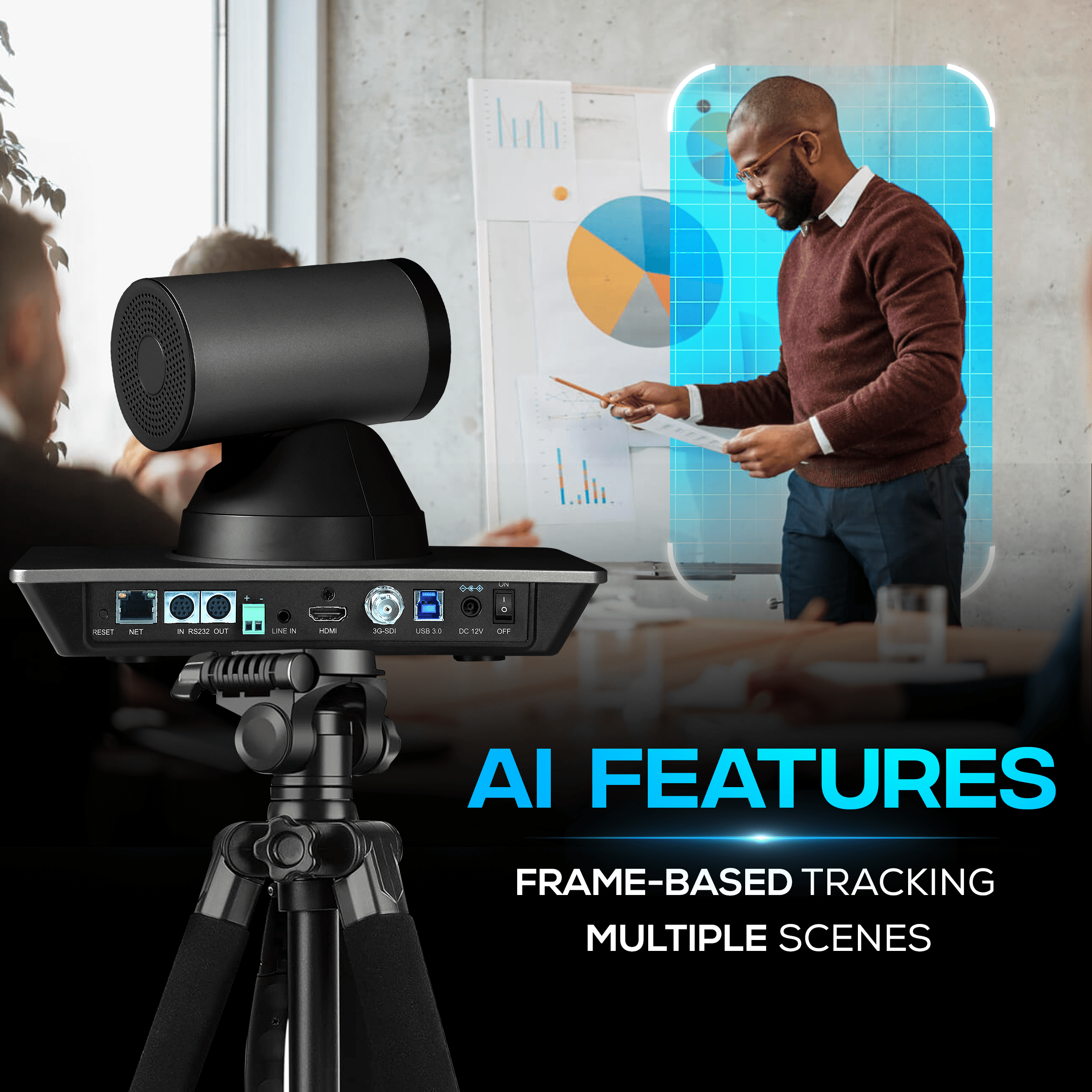

With our AIWaft 4k PTZ camera, the content you put up enhances & does justice with the overall quality of the video. This can be operated manually or through automated presets, and the camera also has advanced features such as motion tracking and image stabilization.
| S.No. | Parameter | Specifications |
| 1 | Model | AIW20A1 |
| 2 | Type | AIWaft 4k PTZ Camera |
| 3 | Resolution | 2160p @ 60fps, 1080P @ 60fps, 720P @ 60fps |
| 4 | Video Format | H.264 AVC, H.264 SVC, H.265, MJPEG |
| 5 | Optical Zoom | 12X (f 4.4mm ~ 52.8mm, F1.8 ~ F2.6) |
| 6 | Digital Zoom | 16X |
| 7 | Minimal Illumination | 0.05 Lux @ (F1.8, AGC ON) |
| 8 | White Balance | Automatic, one-click, manual |
| 9 | Backlight Compensation | Support |
| 10 | Video S/N | ≥55dB |
| 11 | Digital Noise Reduction | 2D&3D Digital Noise Reduction |
| 12 | Sensor | 1 / 2.5”, CMOS, Effective Pixel: 8.51M |

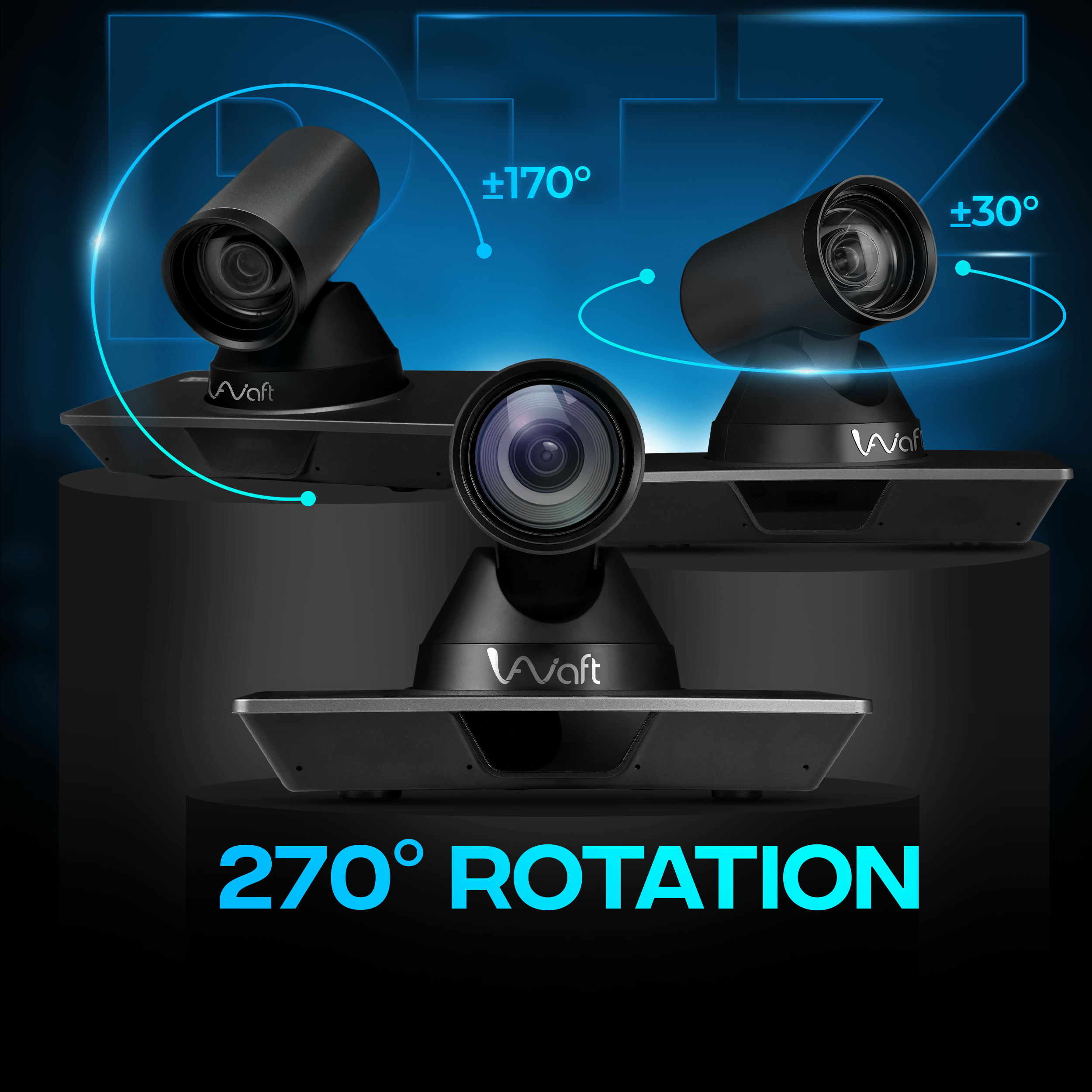

| 13 | PAN Range | ±170° |
| 14 | Tilt Range | -30° ~ +30° |
| 15 | Horizontal Angle of View | 71 ° ~ 8.2 ° |
| 16 | Vertical Angle of view | 42.7 ° ~ 4.5 ° |

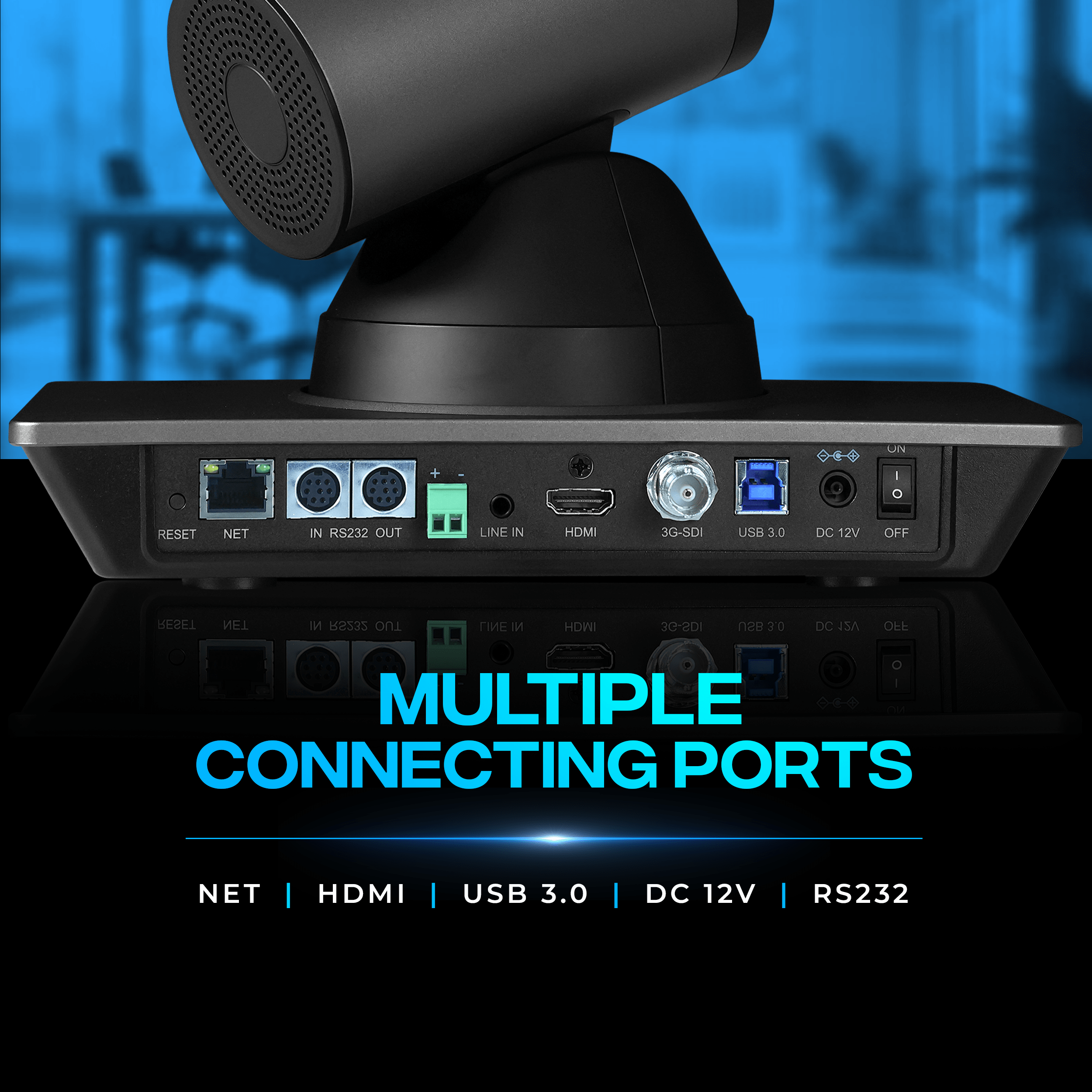

| 17 | Input/Output Interface | HDMI, USB 3.0, LAN(RJ-45), RS232, 3G-SDI, Line In |
| 18 | Operating System Support of AIWaft 4k PTZ Camera | Windows, Mac OS X, Linux, Android |
| 19 | No. of Preset | 255 Preset |
| 20 | Input Voltage | DC 12V |
| 21 | Power Consumption | 12W (Max) |
| 22 | Operating Temperature | -10 ° C ~ 40 ° C |
| 23 | Dimension (W X H X D) | 200mm x 176mm x 130mm |
| 24 | Net weight | 1.41 Kg |
Full function, HDMI + SDI + IP + USB four-channel simultaneous outputs, compatibility USB2.0, support compressed video output, support UVC protocol.
New generation SONY 1 / 2.5-inch high-resolution UHD CMOS sensor with a maximum of 8.51 million pixels, which enables 4K (3840×2160) ultra-high-resolution, high-quality images, downward compatibility including 1080P, 720P and other resolutions.
Use 71° wide-angle, high quality lenses, support 12x optical zoom, and 16x digital zoom.
New CMOS image sensor with ultra-high SNR can effectively reduce the image noise under low illumination. At the same time, the 2D and 3D noise reduction algorithms are applied to greatly reduce the noise. Even under ultra-low illumination, the picture is still Clean And Clear.

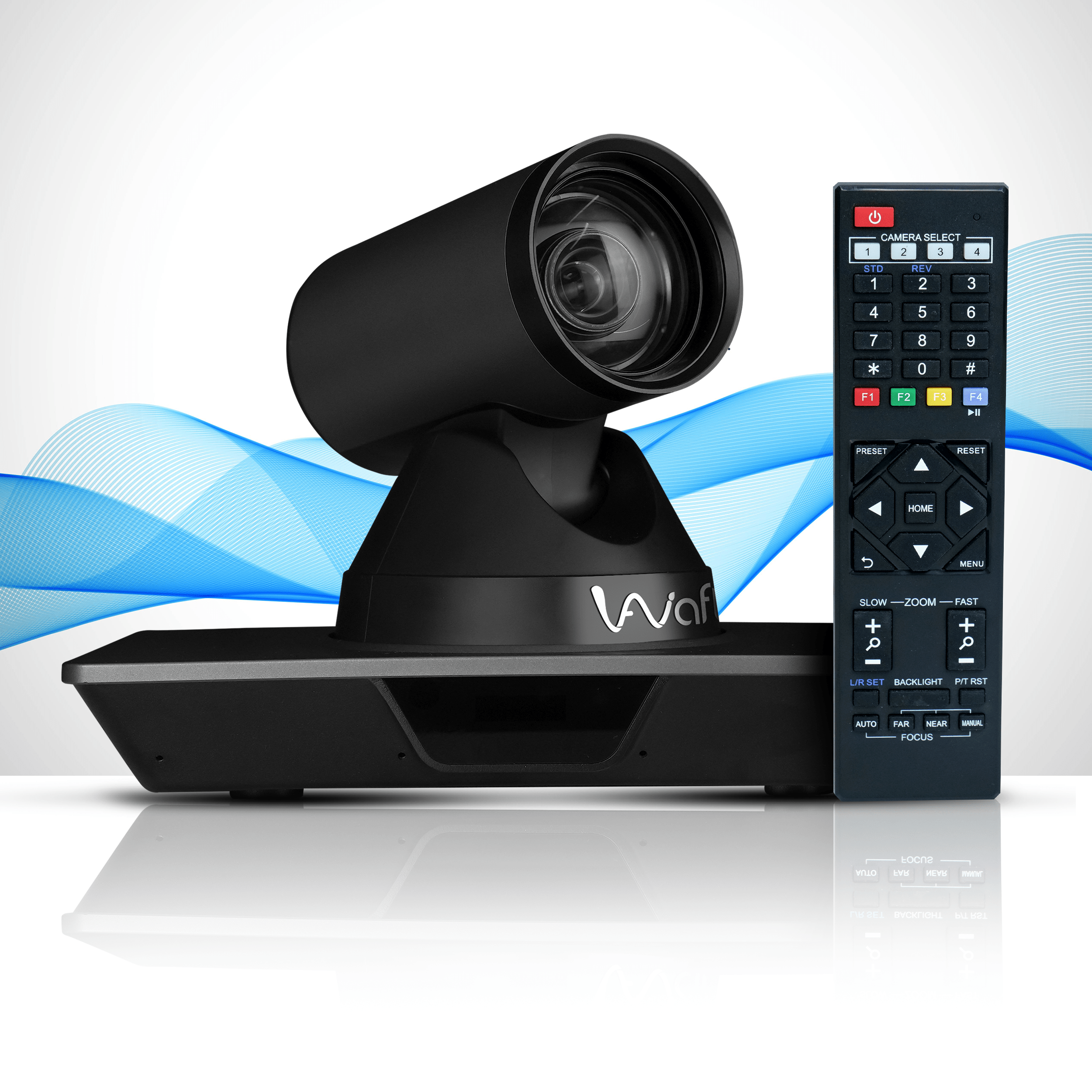

RS232, network and USB can be used to control the camera.
The output H.264 stream supports Slice and SVC encoding modes for high-end USB conferencing video applications.
At the same time support two streams of stream output (YUY2, MJPEG, H.264 two), to reduce the host codec pressure.
