AIWaft Video Mixer – 4K HDMI/SDI Switcher for Live Streaming, Multi-Camera, PTZ Control, USB & SD Recording, 8-Layer Effects, 4-Channel Input
Key Features

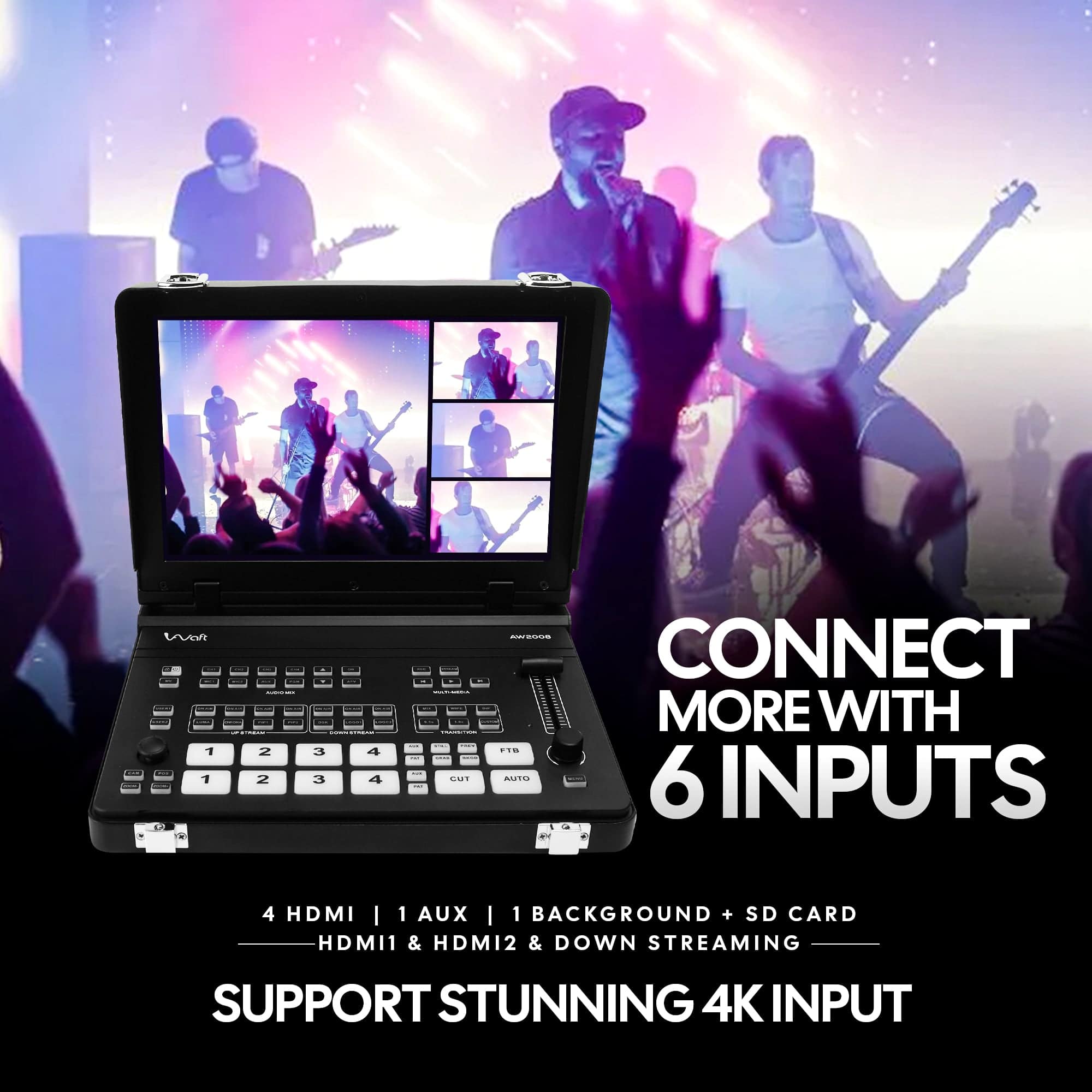

- 4K HDMI Video Switcher: Supports 4 HDMI inputs with up to 2160p60 resolution.
- Multi-Camera Live Streaming: Seamless switching between 4 video sources.
- PTZ Camera Control: VISCA IP protocol support for remote camera control.
- USB & SD Card Recording: Record live streams directly for backup & post-production.
- 8-Layer Video Effects: Add transitions, PIP, chroma key, logos, and overlays.
- Professional Audio Support: 4 HDMI audio inputs + 3.5mm stereo line in/out.
- Flexible Streaming Options: RTMP, H.264 encoding, UVC output, and LAN live streaming.
- Compact & Portable: Lightweight and easy to set up for on-the-go productions.
Technical Details
| Brand | AIWaft |
|---|---|
| Manufacturer | AIWaft |
| Model Number HDMI | AW2008 |
| Model Number SDI | Aw2009 |
| Size | 10 Inch |
| Video Input | HDMI 2.0*2+HDMI-2 |
| Video Output | HDMI PGM 1+Aux*1, USB3.11(Type-C) LAN1, |
| Audio Input | Line (3.5mm stereo) *2 |
| Audio Output | Line (3.5mm stereo) *1 |
| Control Interface | LAN*1 For Network Livestream, PTZ Camera Control, Software Control |
| UVC Output | USB-A*1 |
| USB | For Video Recording Storage, Camera, Tally, LOGO, Firmware Upgrades, etc. |
| SD Card | Video Recording Storage |
| Transition | T-Bar/AUTO/CUT |
| Effects | WIPE(Multiple Patterns)/MIX/DIP/Transition Preview/BKGD /STILL (Freeze)/MUTE/FTB |
| Live Mode | Portrait Screen & Landscape |
| Key |
|
| Layers | PGM Supports Up To 8 Layers |
| Audio | HDMI*4, Multimedia & 2 Microphone/Analog Audio Inputs |
| PTZ | VISCA IP Protocol |
| Media library | Preset A Variety Of Background Images, Logos, And Videos |
| Stream | H.264/Support Recording And RTMPs Support Recording Streaming Bit Rate Separation |
| LOGO | Max 940*540 Pixel, Support Alpha Transparent Channel (PNG Image) |
| IP Control | WB Server( Support Phone, PC, IPad) |
| PGM Output | 1080p 60/59.94/50/30/29.97/25/24/23.98 1080i50/1080i60 |
| Color Space | RGB/YUV |
| UVC Output | USB3.1/Max YUV2 1080p60 |
| SDI Input | NO |
| HDMI Input | 2160p60/59.94/50/30/29.97/25/24 /23.98(HDMI2.0), 1080p 60/59.94/50/30/29.97/25/24 / |
| Voltage | 7~24V |
| Power Dissipation | 20W |
| Size (LDW) | 250*206*63MM |
| Weight | 2.0kG |
| Accessories | (12V 2A)×1 USB3.0 Cable*1(A to A) |
Seamless Switching, Ultimate Control
The AIWaft C1 4-Channel HDMI Video Mixer transforms live production with smooth multi-source switching, real-time effects, and professional-grade performance—perfect for broadcasting, streaming, and live events.
Capture high-definition videos in full HD with instant recording during live streams. This feature lets you immediately review your footage, ensuring every crucial moment is preserved and quality-checked on the fly. It enhances your streaming experience with reliable, seamless video capture.
Experience crystal-clear visuals on a 10-inch precision screen, which provides enhanced clarity and smooth control over transitions and effects. The vibrant display allows for meticulous editing and management of your live content, making every detail pop with professional accuracy.
Effortlessly toggle between landscape and portrait modes to suit your streaming needs. This flexible mode switching adapts your presentation to various devices and social platforms, ensuring that your video output is always optimized for the best viewing experience, regardless of orientation.
Transform your live streams with professional keying effects using advanced chroma and luma keying. Create dynamic virtual studio environments by seamlessly blending backgrounds, adding depth and creativity. This tool delivers studio-quality visuals that elevate your production effortlessly.
General Questions About
4k HDMI SDI Video Mixer
The AIWaft Video Mixer is a 4K HDMI video switcher designed for live streaming, multi-camera production, and broadcasting, offering professional video mixing, transitions, and real-time effects.
It is ideal for content creators, live event producers, churches, educators, gamers, and professional broadcasters who need seamless multi-camera switching and high-quality live streaming.
Yes, the AIWaft Video Mixer supports 4K input (2160p60) and Full HD output (1080p60) for high-quality streaming.
Video & Audio Features
It has 4 HDMI inputs for connecting multiple cameras or devices and 2 HDMI outputs for program and auxiliary output.
Yes, it supports multiple transitions like WIPE, MIX, DIP, along with chroma key, picture-in-picture (PIP), and logo overlays.
Yes, it has two 3.5mm stereo line inputs for connecting external microphones or audio sources.
Yes, the AIWaft Video Mixer supports audio synchronization for precise control during live streaming.
Streaming & Recording
Yes, the AIWaft Video Mixer supports RTMP streaming for platforms like YouTube, Facebook, and Twitch, along with LAN streaming and UVC output.
Yes, you can record directly to a USB drive or SD card for post-production.
The maximum streaming and recording resolution is 1080p60.
Connectivity & Control
Yes, it supports VISCA IP protocol for controlling PTZ cameras remotely.

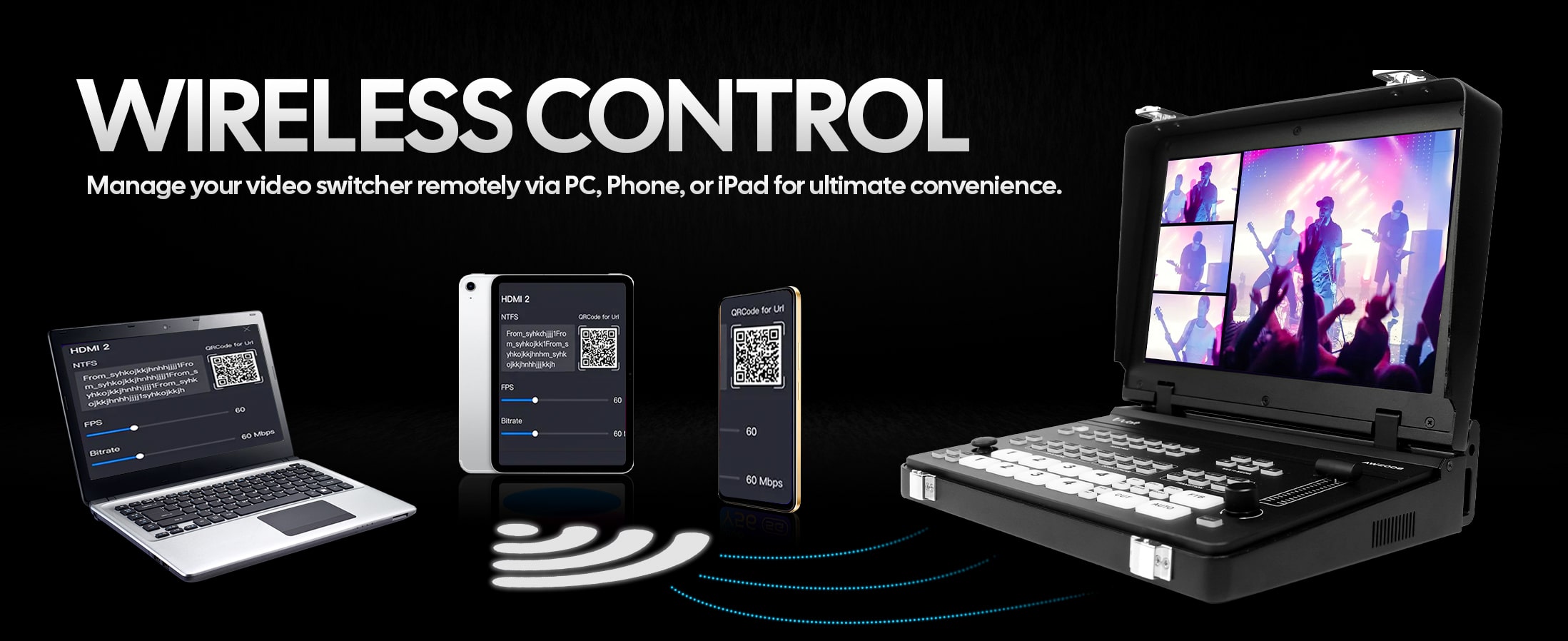

Yes, it has IP control via a web server, allowing you to manage the mixer from a PC, tablet, or smartphone.
It operates on 7V–24V power and comes with a 12V 2A adapter.
Compatibility & Setup
Yes, it works seamlessly with OBS Studio, vMix, Streamlabs, Zoom, and other broadcasting software.
Yes, it supports both Windows and macOS via USB and LAN connections.
Yes, the AIWaft Video Mixer is compact and lightweight, making it ideal for on-the-go productions.
Pricing & Availability
The price varies based on offers and availability. Please check the product page for the latest price.
You can purchase it online from Edusquadz and other authorized retailers.
Yes, AIWaft provides a manufacturer warranty. Please refer to the warranty terms on the product page.
