AIWaft HDMI Video Switcher – Multi-Input Live Streaming Mixer with PTZ Control, 4K Support, USB & SD Recording, Special Effects & Keying
Key Features
- 5-Channel HDMI Input (4 HDMI + 1 Media)
- 4K & Full HD Support with 2160p60 & 1080p60
- USB 3.1 & SD Card Recording for seamless content storage
- Advanced Transitions & Effects (WIPE, MIX, DIP, PIP, DSK, Logo)
- PTZ Camera Control with VISCA IP Protocol
- Multi-Channel Live Streaming with H.264 encoding
- Audio Mixing & Delay Control (HDMI, Microphone, Stereo Input)
- Compact & Lightweight Design (244×120×50mm, 805g)
- DC 12V Power Supply with 12W low consumption
Technical Details
| Brand | AIWaft |
|---|---|
| Manufacturer | AIWaft |
| Model Number | AW2002 |
| Video Input | HDMI 2.0×2+ HDMI 1.4×2.Media 1 |
| Video Output | HDMI PGM×1+Auxx1, USB3.1×1(Type-A), RJ45×1 Network upstream |
| Audio Input | Line(3.5mm Stereo)×2 |
| Audio Output | Line(3.5mm Stereo)×1 |
| Control Interface | LAN*1 for network upstream, PTZ camera control, Software control |
| UVC Output | USB TYPE-Ax1 |
| USB | Use for video encoding storage, Camera, Tally, LOGO, Upgrade etc. |
| SD Card | Video Recordinig storage |
| Power | DC12V×1 |

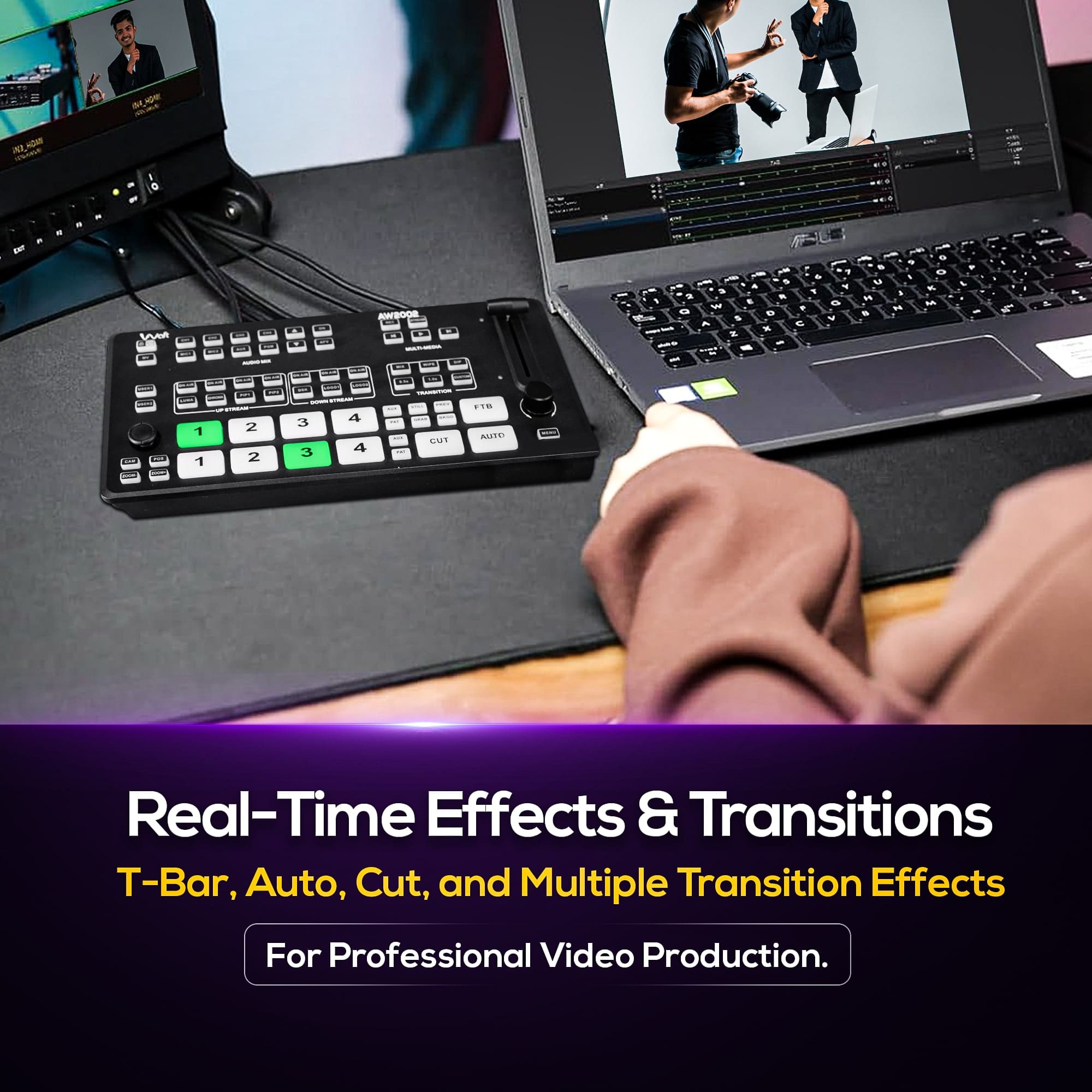

| Transition | T-Bar/AUTO/CUT |
| Special Effects | WIPE(various patterns)/MIX/DIP/Transition preview/BKGD/Freeze/MUTE/FTB |
| Layout | Support Horizontal/vertical screen |
| Key | Upstream key: Luma Keyx1/Chroma Keyx1/PIP×2/POP Downstream key: DSK×1/LOGO×2 |
| layers | PGM supports up to 8 layers |
| Audio | HDMIX4, multimedia and 2 Way Microphone/ Stereo input: audio delay: 0-1s |
| PTZ | VISCA IP Protocol |
| Media Library | support preset multi background picture, LOGO and video stream |
| Streaming | H.264 encoding, supports recording and multi-channel network streaming, supports recording and streaming bit rate separation |
| TV Station Logo | Any size (up to 940x540) and position, support alpha transparent channel (png image) |
| HDMI Input Support | 2160p 60/59.94/50/30/29.97/25/24/23.98 (HDMI2.0 interface), 1080p 60/59.94/50/30/29.97/25/24/23.98 1080/50/1080160" |
| HDMI PGM Output | 1080p 60/59.94/50/30/29.97/25/24/23.98 1080/50/1080160 |
| HDMI Color Space | RGB/YUV |
| UVC Output | USB3.1 lossless output, maximum support YUV2 1080p60 |
| Data Stream Support | 1080p 60/59.94/50/30/29.97/25/24/23.98 |
| Voltage | 7-24V |
| Power Consumption | 12W |
| Size | 244×120×50mm |
| Weight | 805g |
| Temperature | Working temperature: 0C-50C Storage temperature: -30°C-700 |
| Accessories | Adapter (12V 2A) x1; USB3.0 cable (A to A) |
Professional-Grade Switching, Simplified

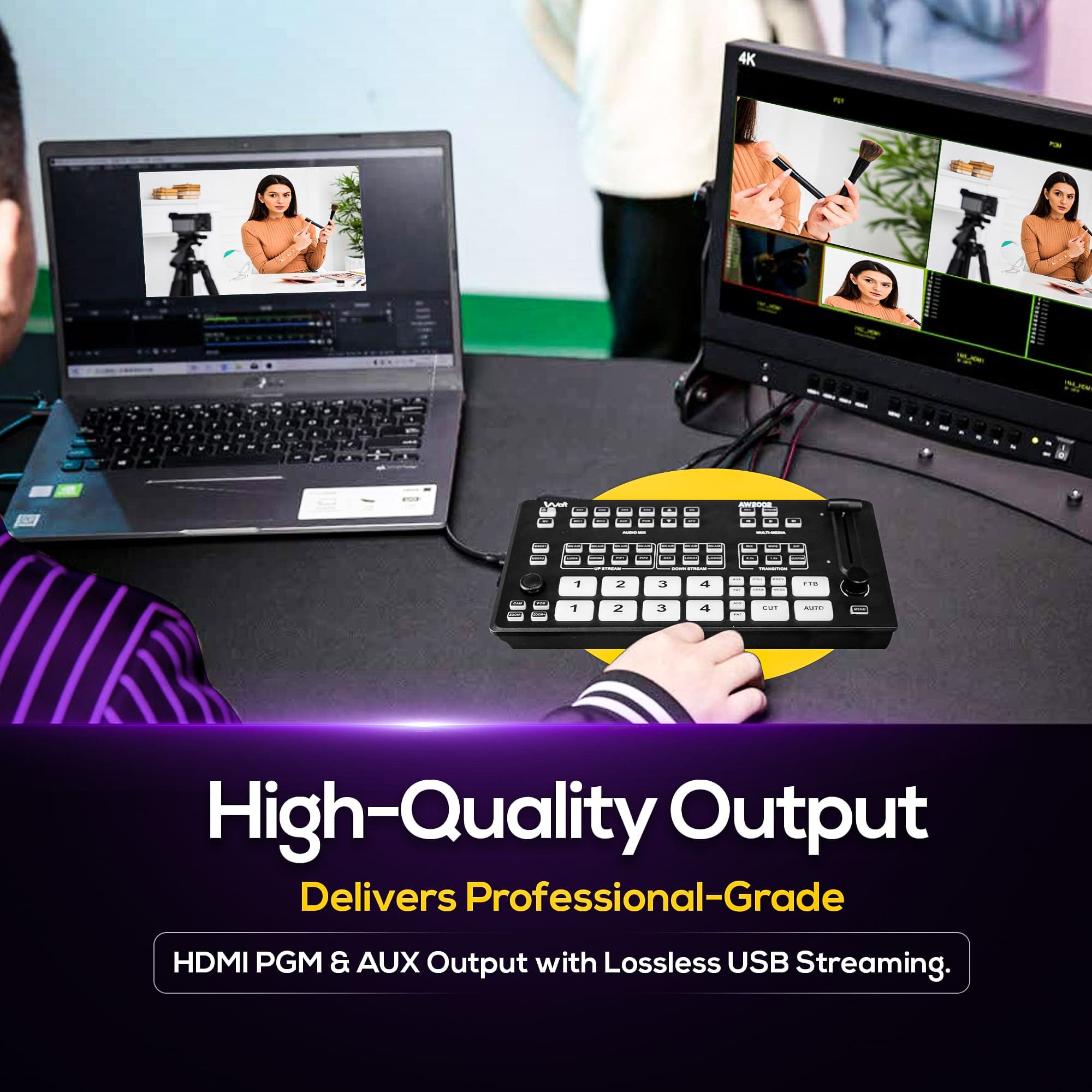

With real-time HDMI source management and high-quality output, the AIWaft HDMI Video Switcher is your ultimate tool for seamless video production and live streaming.

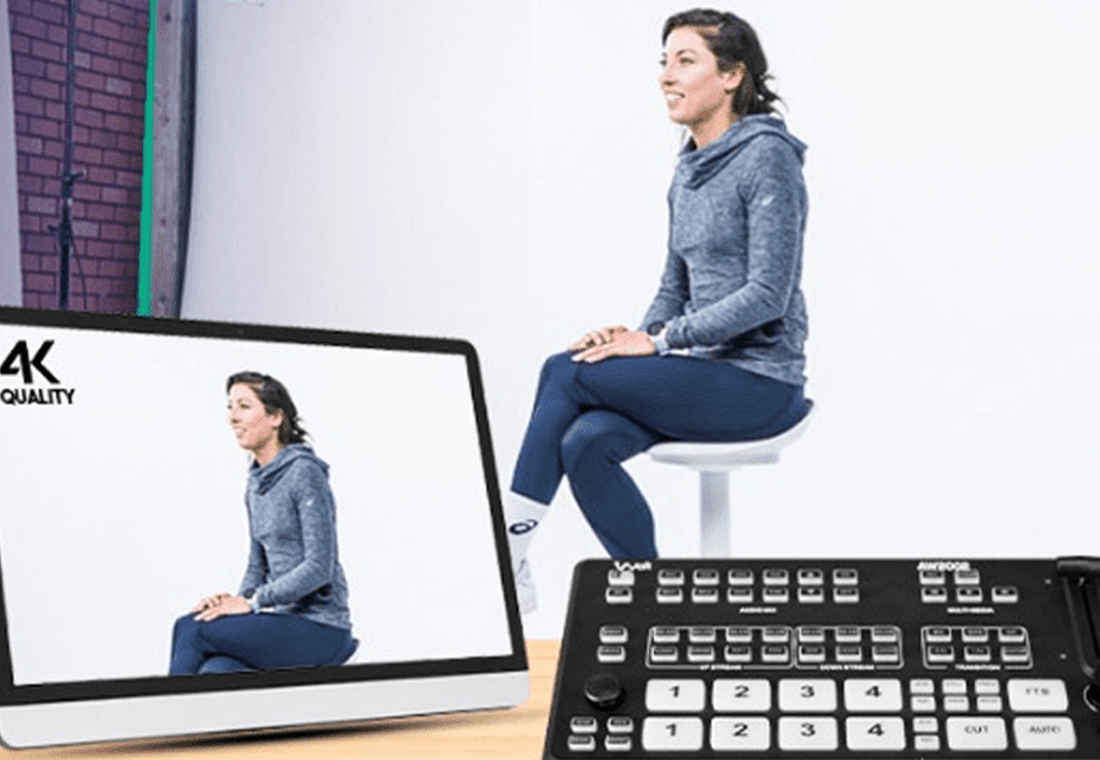

Enjoy ultra-clear visuals with support for resolutions up to 4K 2160p60. Perfect for professional streaming, live events, and high-quality video production.
Equipped with RJ45 for seamless upstream PTZ camera control and SD card slot for direct recording—making live production smooth and efficient.

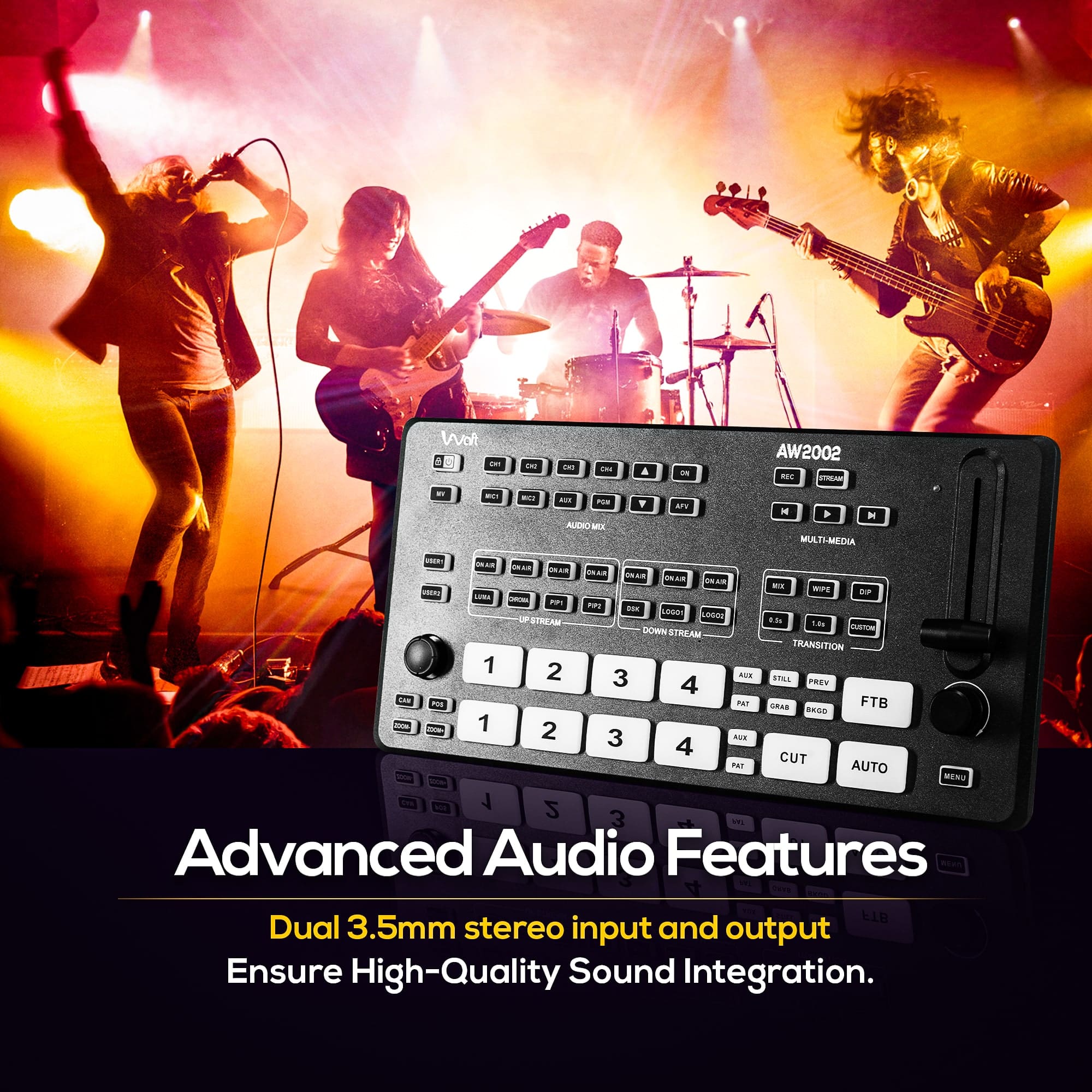

Features dual stereo audio inputs and high-fidelity output for crystal-clear sound quality, ensuring your live streams sound as great as they look.
Create visually engaging live content using advanced chroma and luma keying options—ideal for adding green screen effects, titles, and custom overlays.
General Questions About
HDMI Video Mixer
It is a multi-input video mixer designed for live streaming, broadcasting, and multi-camera production, offering smooth transitions, PTZ control, and high-quality output.

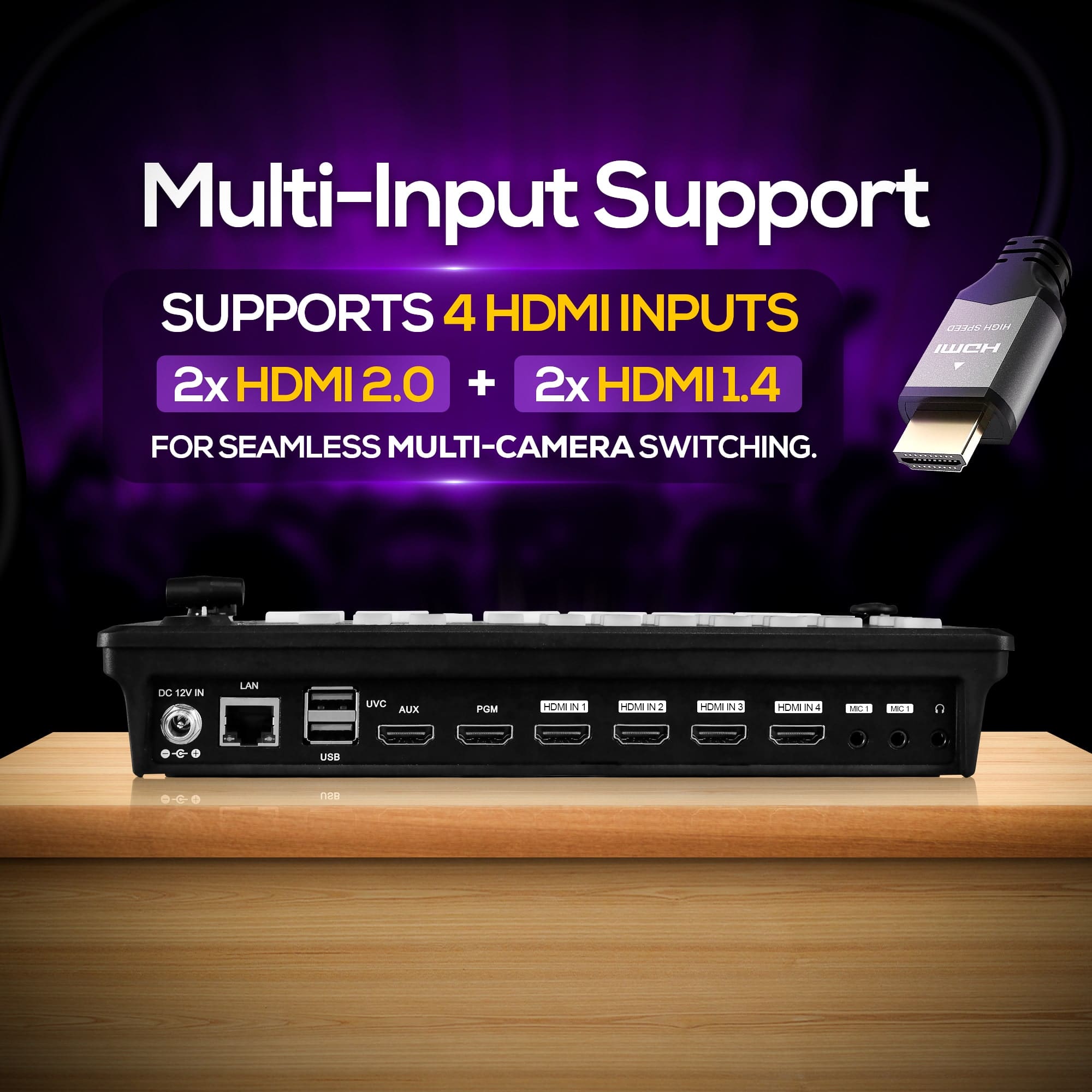

It supports 4 HDMI inputs (2x HDMI 2.0 + 2x HDMI 1.4) and 1 media input for seamless switching.

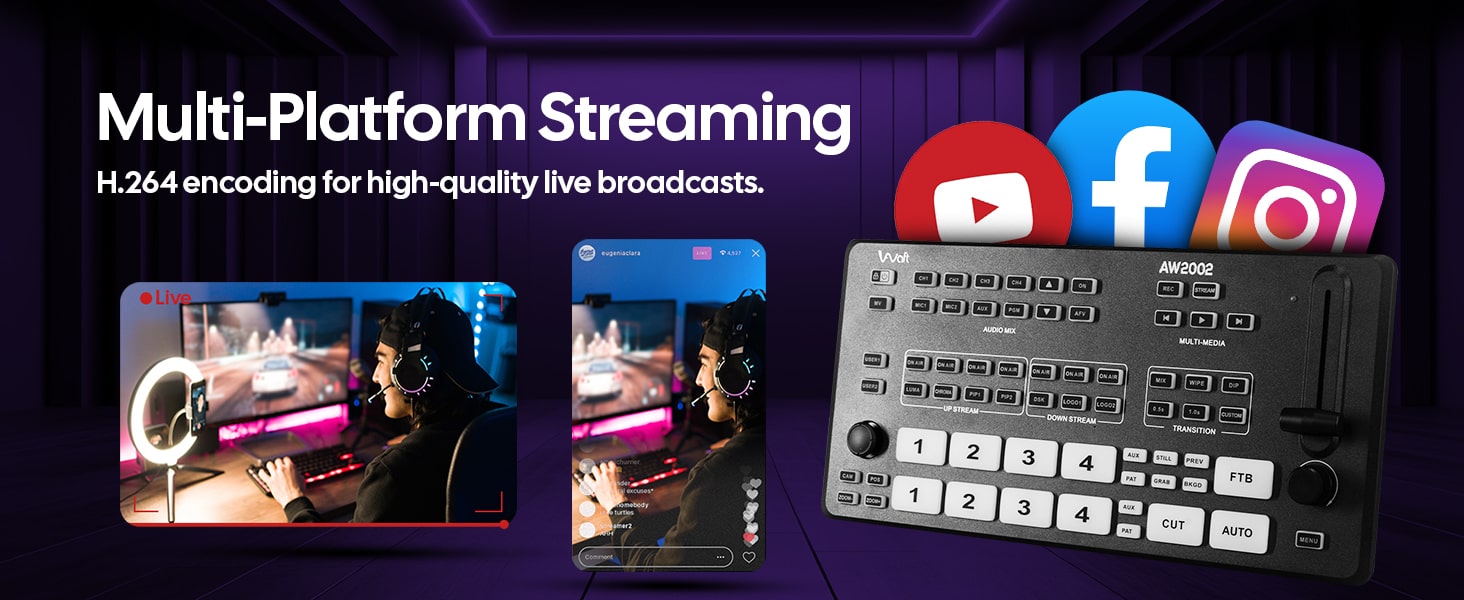

Yes, it supports multi-channel network streaming with H.264 encoding, making it compatible with platforms like YouTube, Facebook Live, and Twitch.
Video & Audio Features
It supports up to 4K UHD (2160p60) input and 1080p60 output for high-quality video streaming.
Yes, it offers Luma Key, Chroma Key, PIP, and DSK features for professional video production.
It has dual 3.5mm stereo audio inputs and one 3.5mm stereo output, along with HDMI embedded audio support.
Yes, it allows audio delay adjustment (0-1s) to sync audio with video.
Control & Connectivity
Yes, it supports PTZ control via VISCA IP Protocol, allowing remote camera adjustments.
It can be controlled via LAN (for network control), PTZ control, and software-based control.
Yes, it features a USB 3.1 Type-A output for lossless 1080p60 UVC streaming.
Recording & Storage
Yes, it supports USB and SD card recording, making it easy to save live production footage.
It records in H.264 format, which is widely compatible with most video editing and streaming platforms.
Power & Design
It operates on DC 12V power supply with a low 12W power consumption.

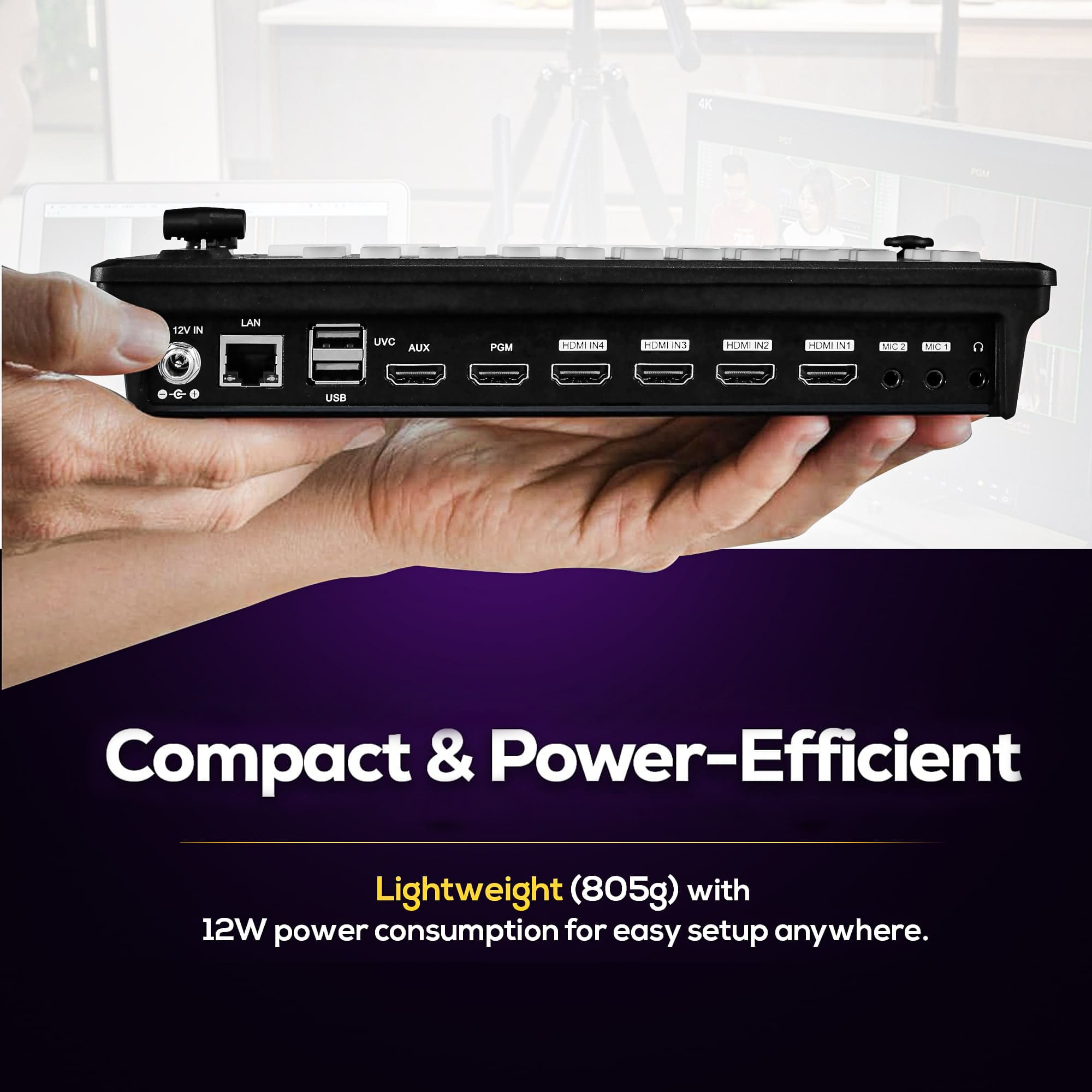

The switcher is compact and lightweight, measuring 244×120×50mm and weighing 805g.
Compatibility & Usage
Yes, it supports various HDMI devices with input resolutions up to 2160p60.
The package includes:
- AIWaft HDMI Video Switcher
- 12V 2A Adapter
- USB 3.0 Cable (A to A)
Absolutely! It includes multi-layer PGM support, professional transitions, PTZ control, and advanced keying—ideal for studio-grade live production.
